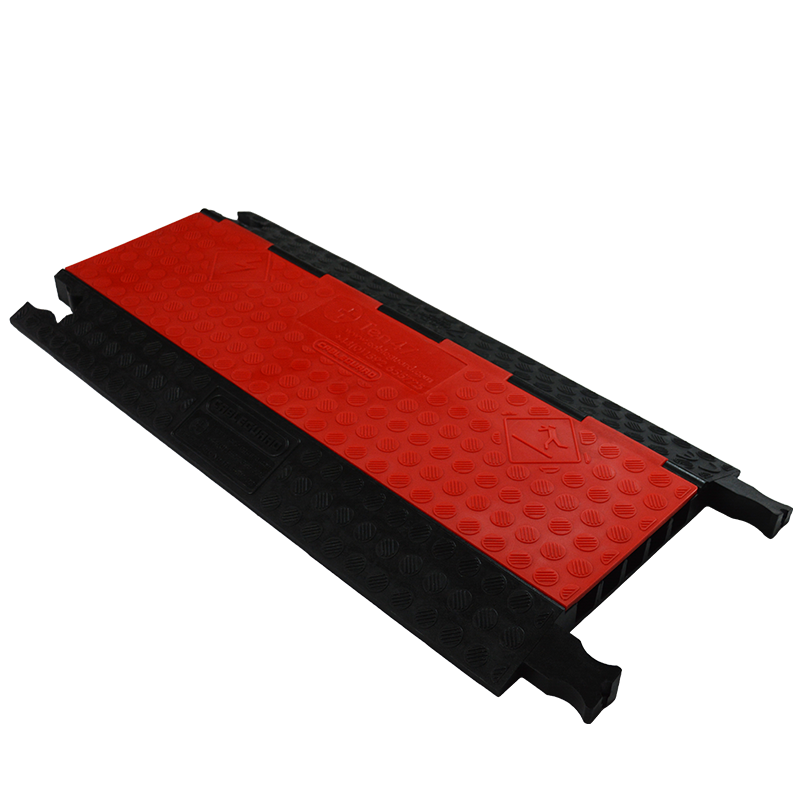

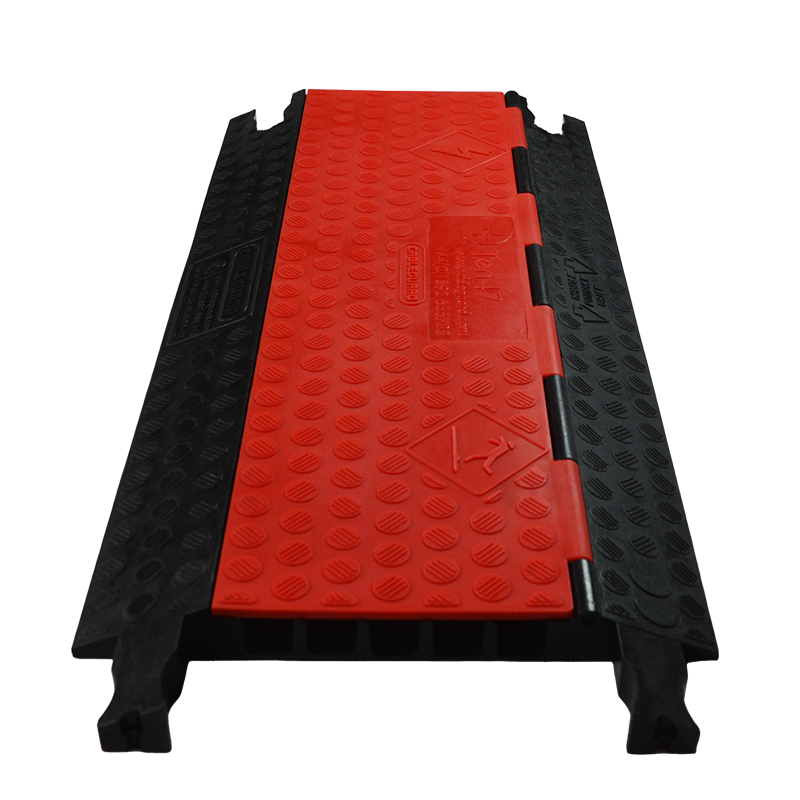

Red Line 5 Channel 22° Ramp
RL5-32-22
Heavy Duty 5 Channel Cable Ramp with large bolt hole connector, field proven for robustness with the ability to attach to the ground. For use with high volume pedestrian and vehicular traffic.
- Low angle 22° black side ramps.
- Strengthened lid hinge.
- Highly visible with red lids and black base.
- Maximum load per axle 9140 kg @ 20°C.
Part Number:
RL5-32-22
| Number of channels | 5 |
| Channel Size W x H (mm) | 34 x 32 |
| Height (mm) | 50 |
| Width (mm) | 450 |
| Length (mm) | 910 |
| Weight (kg) | 10 |
* Dimensions and weights are nominal and accurate to approximately 1%
