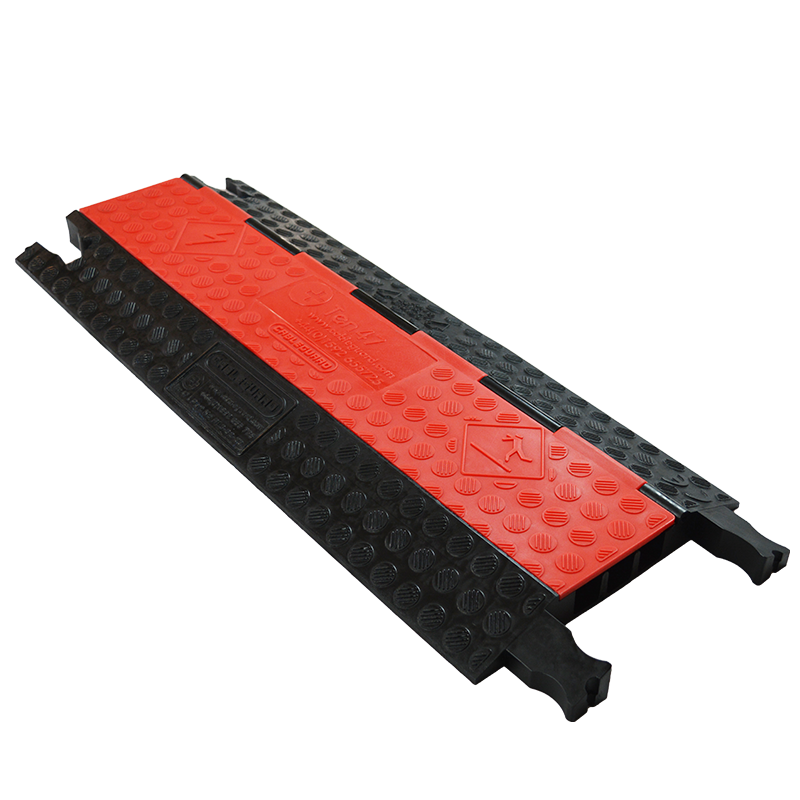

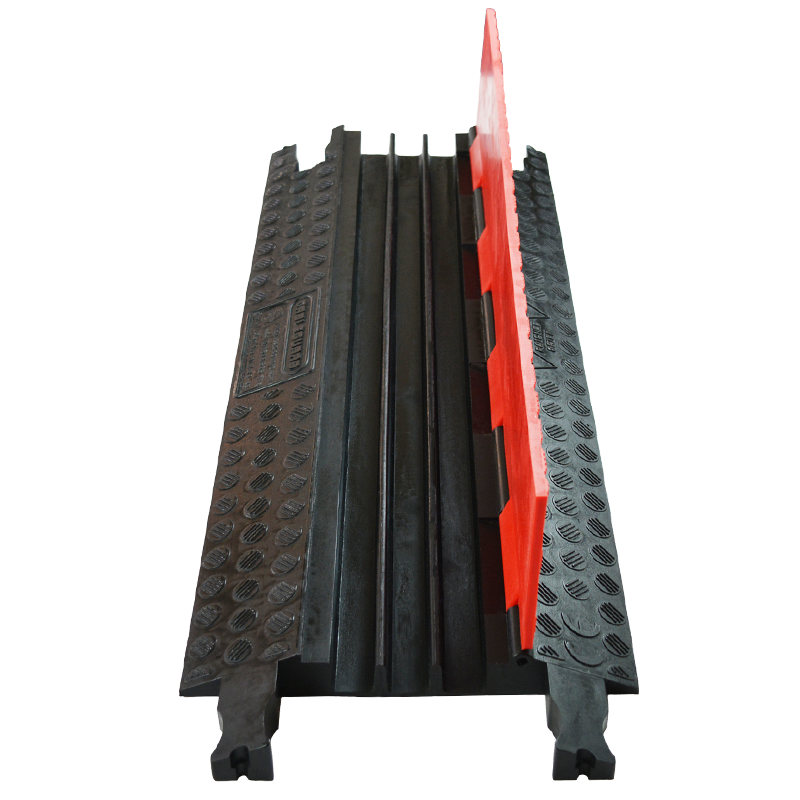

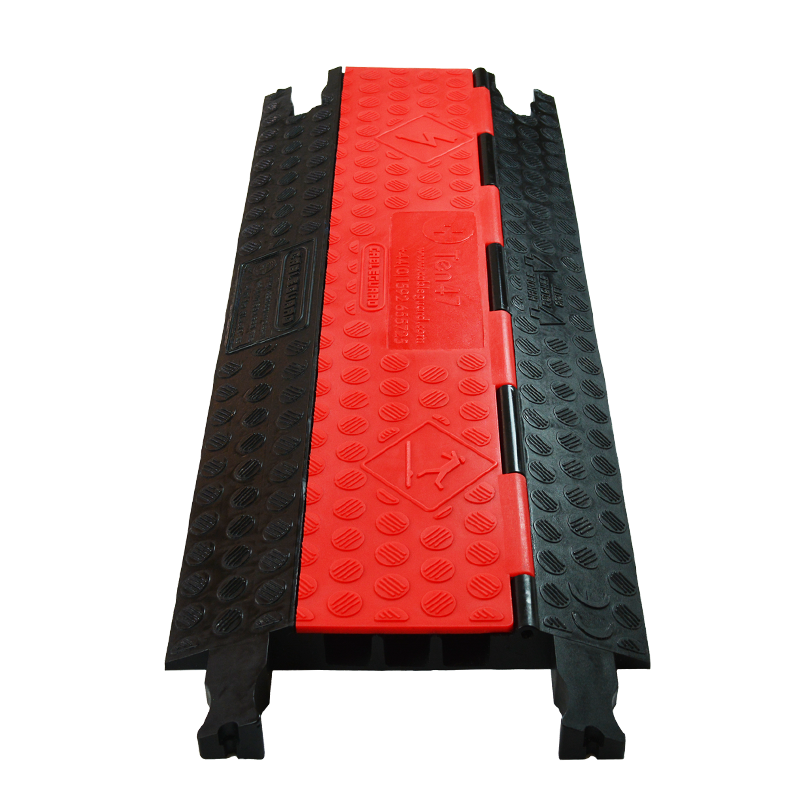

Red Line 3 Channel 22° Ramp
RL3-32-22
Heavy Duty 3 Channel Cable Ramp with Bolt Down connector, field proven for robustness with the ability to attach to the ground. For use with high volume pedestrian and vehicular traffic.
- Low angle 22° black side ramps.
- Strengthened lid hinge.
- Highly visible with red lids and black base.
- Maximum load per axle 9140 kg @ 20°C.
Part Number:
RL3-32-22
| Number of channels | 3 |
| Channel Size W x H (mm) | 33 x 32 |
| Height (mm) | 50 |
| Width (mm) | 365 |
| Length (mm) | 910 |
| Weight (kg) | 7.25 |
* Dimensions and weights are nominal and accurate to approximately 1%
