Red Floor 5 Modular Powerline Cover
RFD-59-PLC
Designed with a robust two-piece interlocking system for easy transport, handling, and quick on-site assembly.
Provides secure, low-profile cable protection and is fully compatible with the Red Floor 5 system.
- Large enough to accommodate 5 Powerline QC connectors, ensuring secure cable management.
- Dropover design removes the need for hinged protective lids, simplifying cable placement.
- Suitable for pedestrian use and light vehicular traffic.
- Features our signature anti-slip tread pattern, consistent across the CableGuard range.
- Operating Temperature -40°C to +49°C.
- Available as standard in red or black.
Part Number:
RFD-59-PLC
| Number of channels | 5 |
| Cavity Size W x H (mm) | 230 x 325 |
| Height (mm) | 72 |
| Width (mm) | 305 |
| Length (mm) | 910 |
| Weight (kg) | 6 / Per Set |
* Dimensions and weights are nominal and accurate to approximately 1%

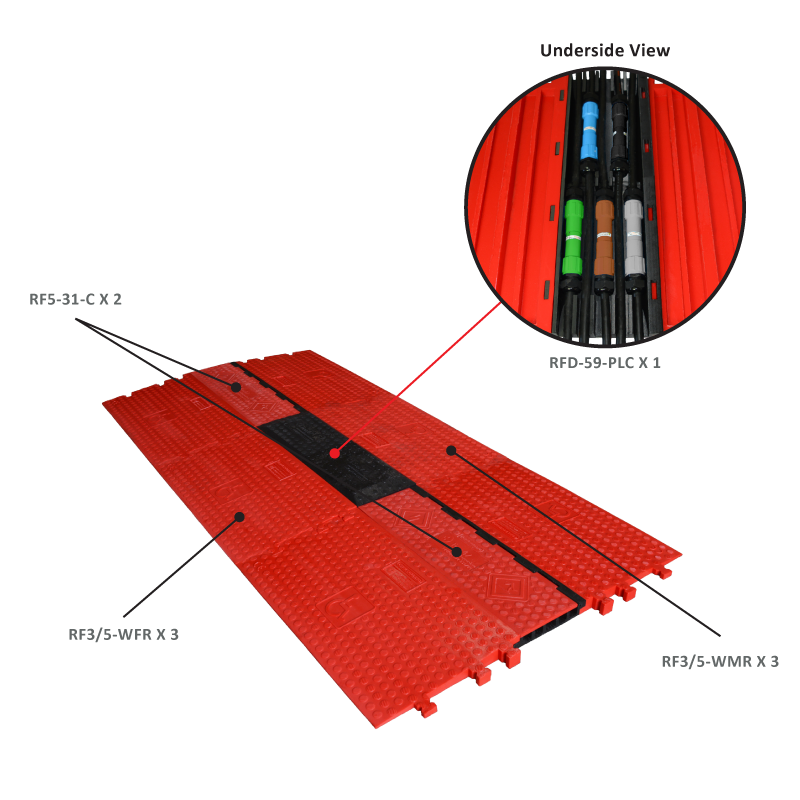

Run of Red Floor 5 Dropover, Red Floor 5 Centres and Wheelchair Ramps
