Red Floor 5 Centre
RF5-31-C
Heavy Duty 5 Channel Centre piece for use with high volume vehicular traffic and all pedestrian traffic.
Available with standard and wheelchair access ramps.
Connect the 5 slot centre pieces together to provide a flat floor surface protecting as many cables as required.
- Maximum load per axle 9140 Kg @ 20°C
Part Number:
RF5-31-C
| Number of channels | 5 |
| Channel Size W x H (mm) | (4x) 33 x 31 (1x) 42 x 31 |
| Height (mm) | 48 |
| Width (mm) | 305 |
| Length (mm) | 910 |
| Weight (kg) | 7.3 |
* Dimensions and weights are nominal and accurate to approximately 1%

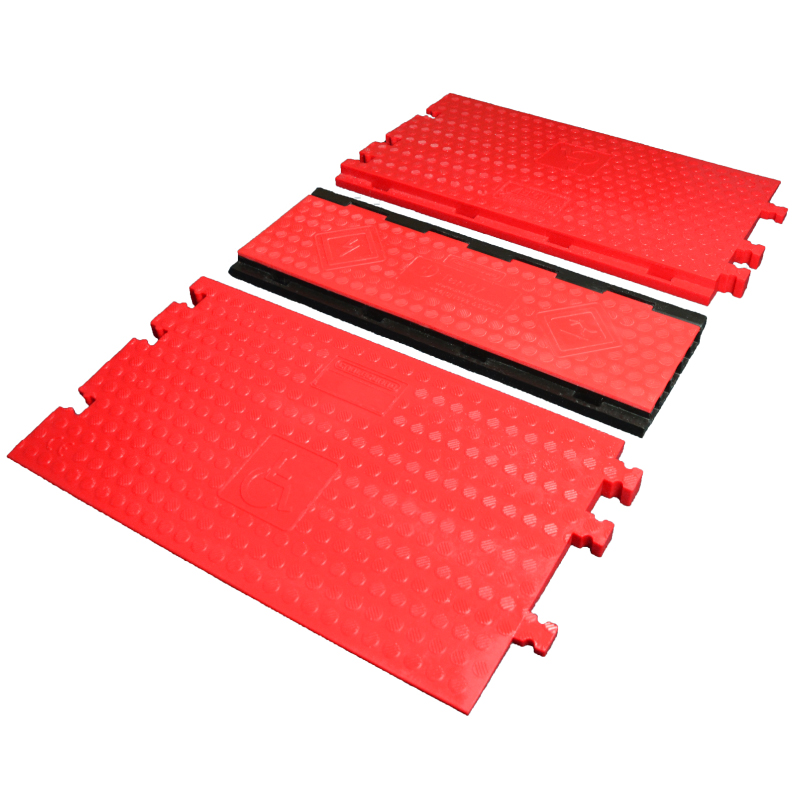

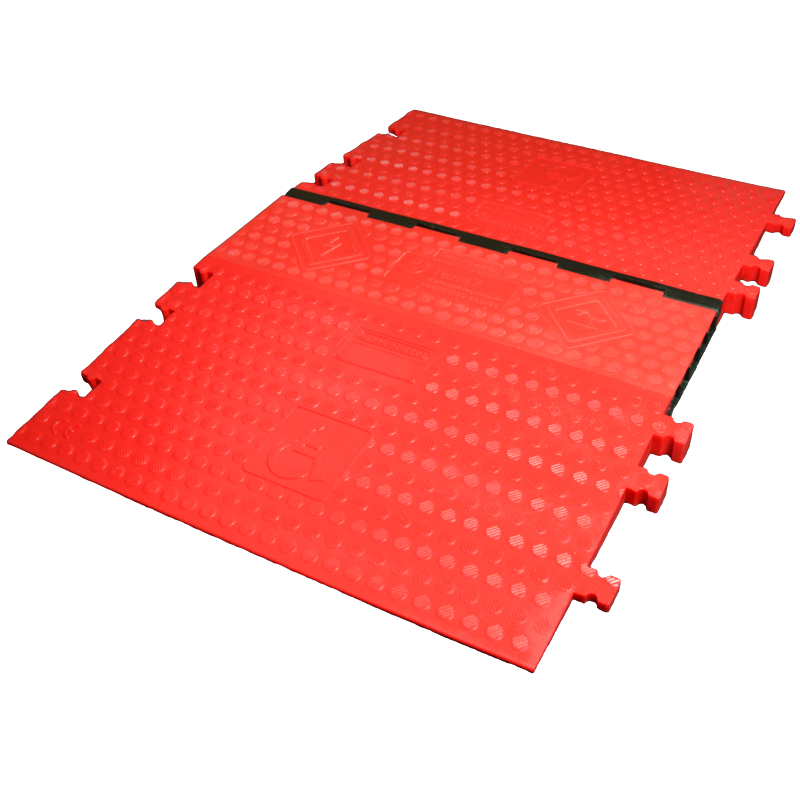

Run of Red Floor 5 Centres with Wheelchair Ramps
